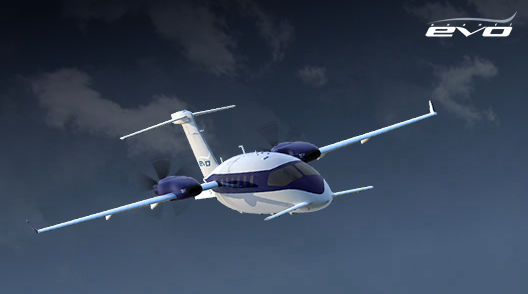

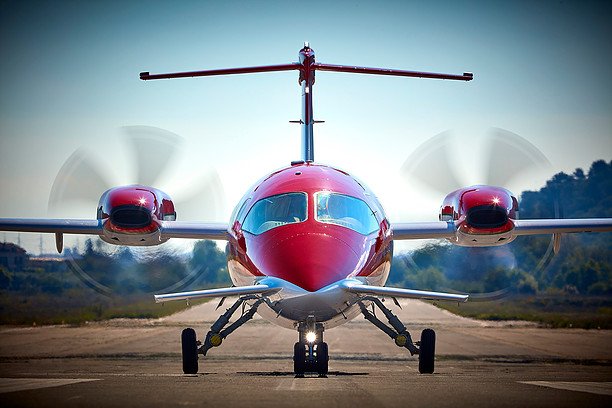

2025 New Avanti EVO

Collins Pro-Line 21 - UPGRADE IFIS 5000

• Radio Management System – Collins RTU-4200, CDU-3000
• Dual VHF COM - Collins VHF-4000 Transceiver with Antenna with 8.33 kHz spacing
• VHF NAV 1 + ADF - Collins NAV-4000 VOR/ILS/MKR/ADF Receiver with Antennae
• VHF NAV 2 - Collins NAV-4500 VOR/ILS/MKR Receiver with Antennae
• Single DME - Collins DME-4000 (3 channel) with Antenna
• Dual Mode S Flight ID Diversity Transponder - Collins TDR-94D
• Radio Altimeter - Collins ALT-4000 (Operation to 2500 ft) with Antennae
• Turbulence Detection Weather Radar - Collins RTA-852 Color Radar with 12" Antenna
• ACAS II – Collins TCAS 4000
• TAWS Class B with Worldwide Database – L-3 Landmark TAWS 8000
• Dual Audio Panel - Baker B1045
• Dual Cockpit Speaker
• Dual hand-held Microphone
• Dual Boom/Microphone/Headset

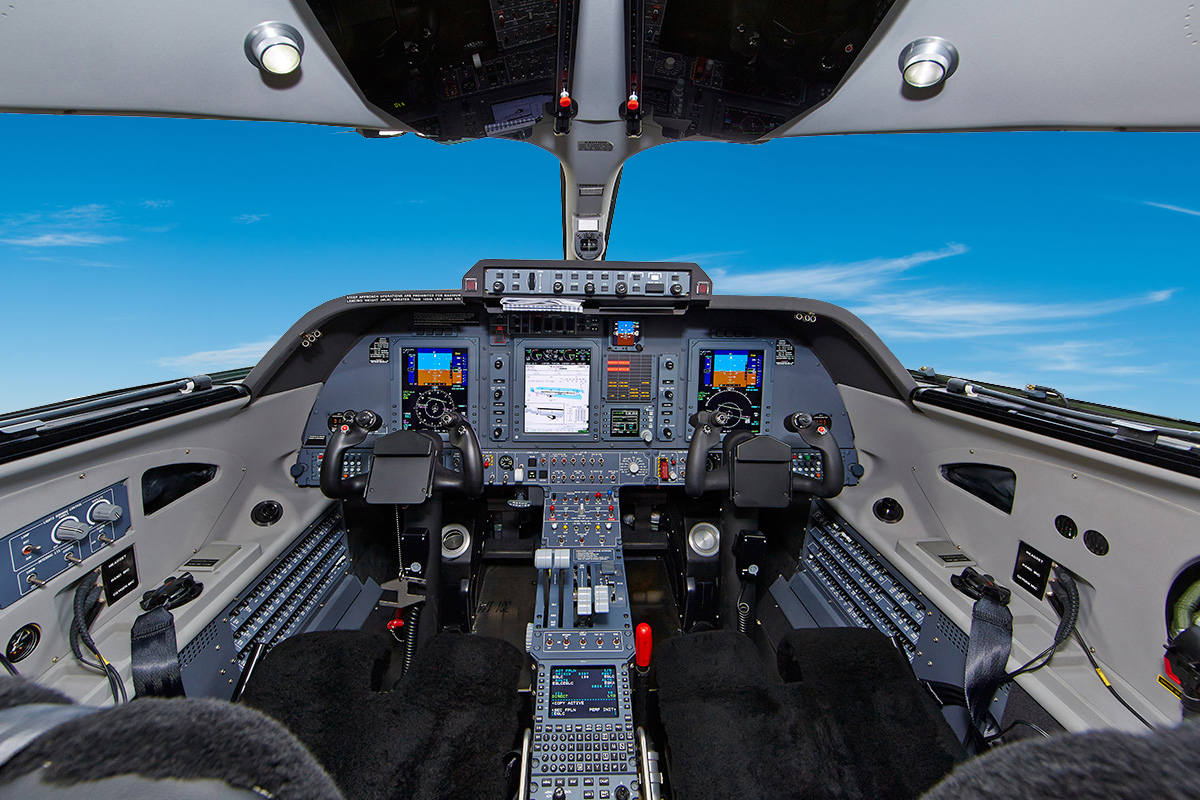

• EFIS with EIS – Three Collins displays AFD-3010, two DCP-3030, CCP-3000
• Flight Guidance System - Collins Dual FGC-3003 (A/P,YD and dual Flight Director included), three SVO-3000 Servos, single FGP-3000 Flight Guidance Panel
• Single FMS - Collins FMC-3000 (NAV to NAV and VNAV), CDU-3000
• DBU-5000
• GPS Sensor Unit - Collins GPS-4000S with full WAAS/LPV capability
• Dual ADS - Collins ADC-3000
• Dual AHRS - Collins AHC-3000 and FDU-3000
• Maintenance Diagnostic System - Collins MDC-3110
• Four Data Concentrator Unit - Collins DCU-3001
• Stand-by Cluster Instrument – L-3 Communications GH-3100
• Emergency Locator Transmitter – Artex C406
• Dual Master Annunciator
• Dual Turn & Slip Indicator
• Reversionary/Miscellaneous Panel

ADS-B Out, SBAS/LPV  & RVSM Compliant

• Factory New Aircraft
• Fully customizable
• Delivery in Q1 2025
• Collins Pro-Line 21 Avionics Suite
• Upgrade for Integrated Flight Information
• Electronic Charts
• Maps Overlay
• SBAS / LPV capability
• ADS-B Out

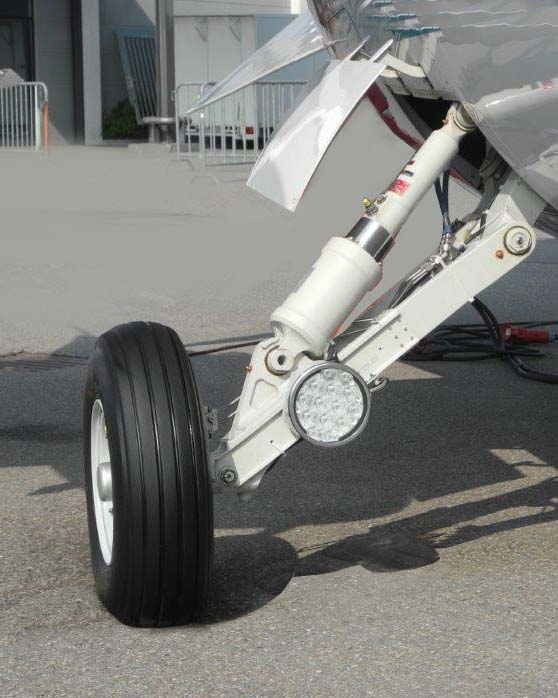

• New LED Taxi & LNDG Lights
• Satellite Phone
• Full OEM Warranties
• Complete Training Package (2 pilots + 1 Technician)
• Enlarged Cabin Door (on request)
• Extended Range Tank (on request)

2 x Pratt & Whitney Canada PT6A-66B

• 1,800 FH HSI
• 3,600 FH TBO

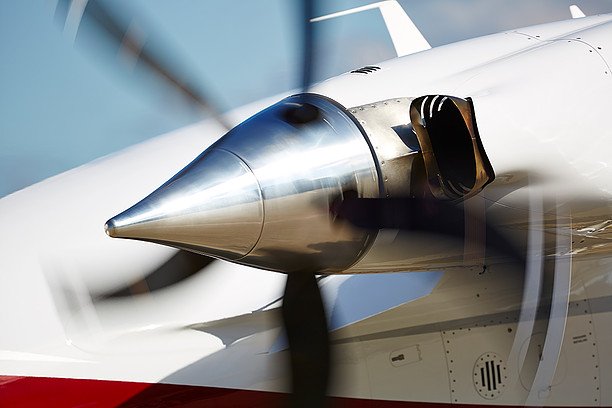

2 x Hartzell HC-E5N Propellers

Five-blade scimitar, low noise, constant speed, fully feathering, hydraulically operated - Diameter : 86,5 in ( 2197 mm)

• 3,600 FH / 6 YR TBO

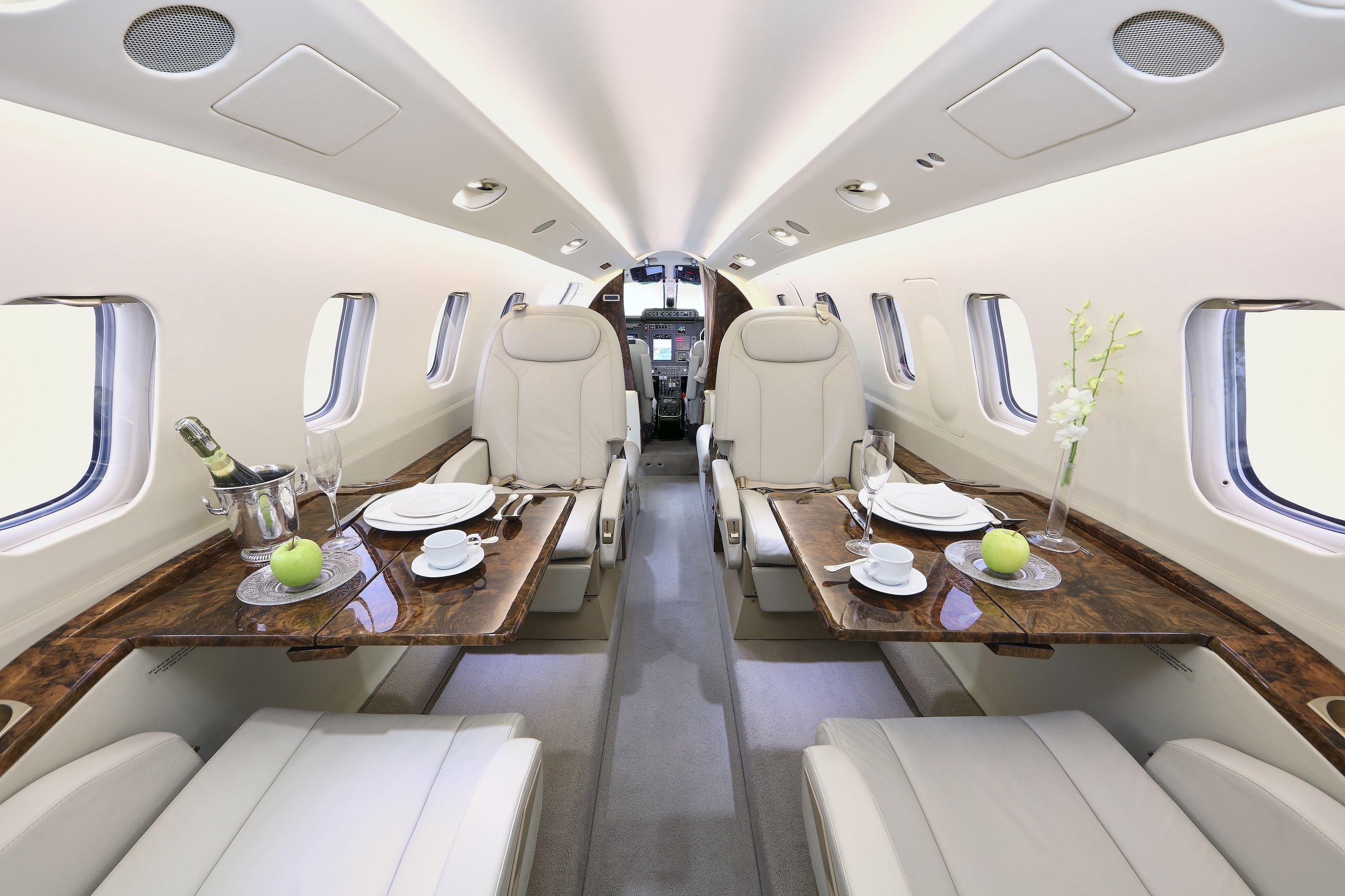

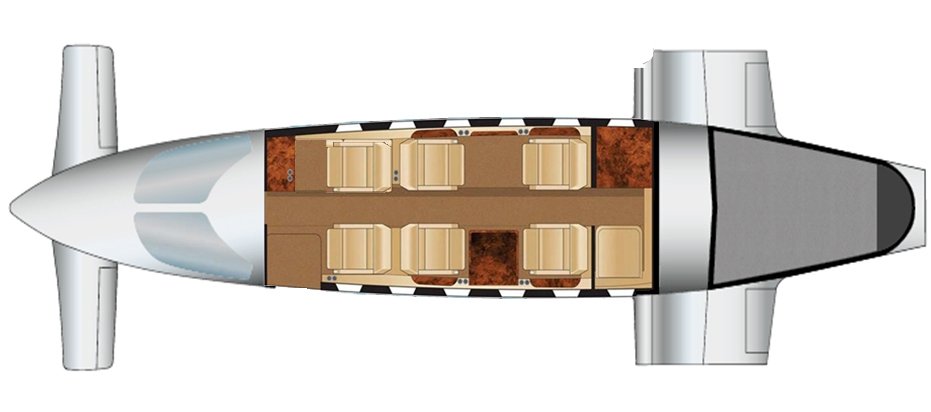

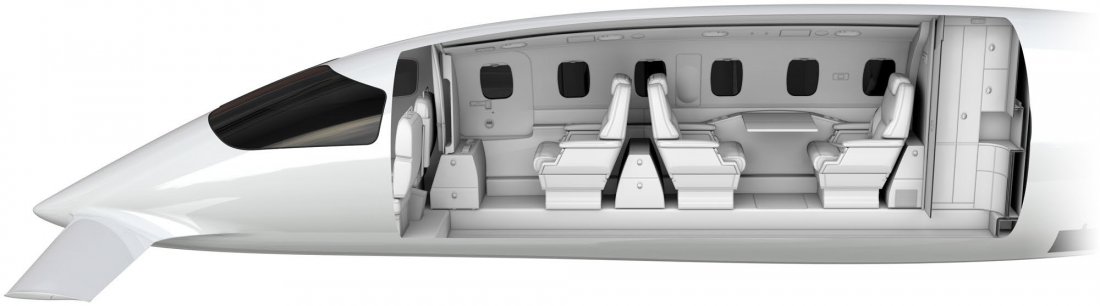

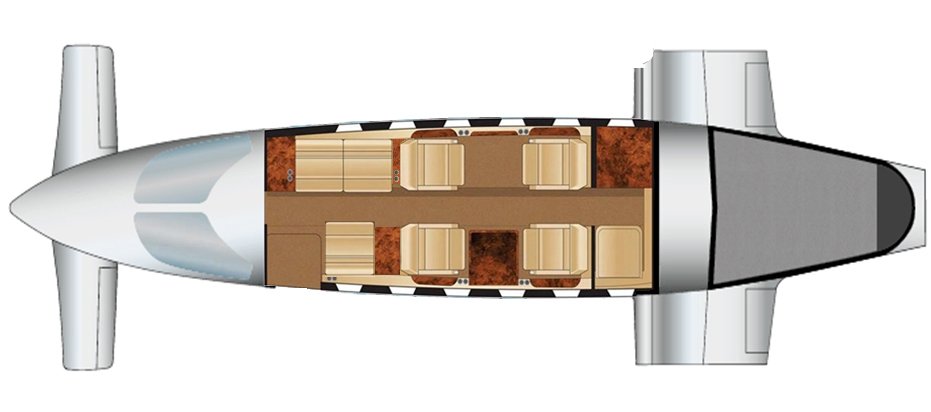

• 7 + 1 or 6+1 Cabin Layouts Available

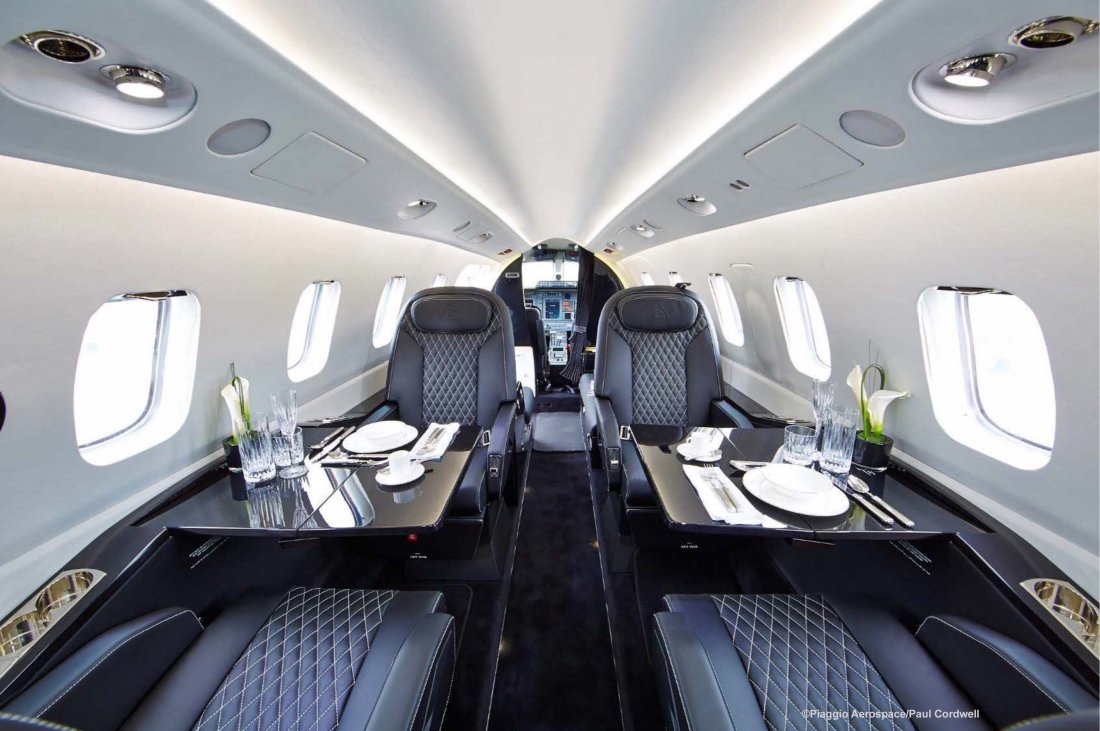

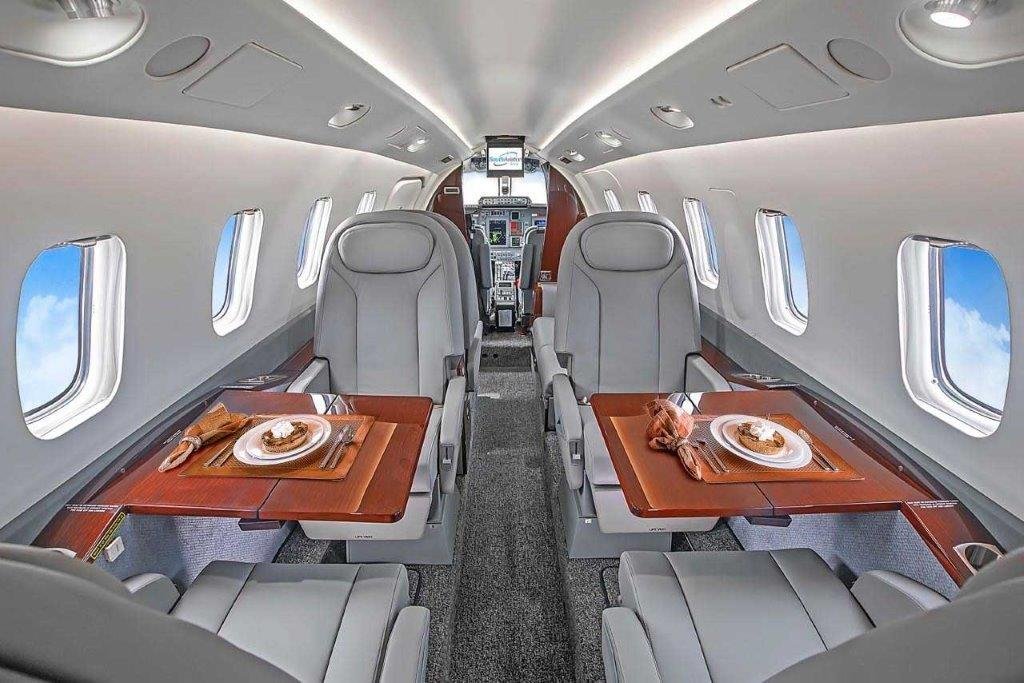

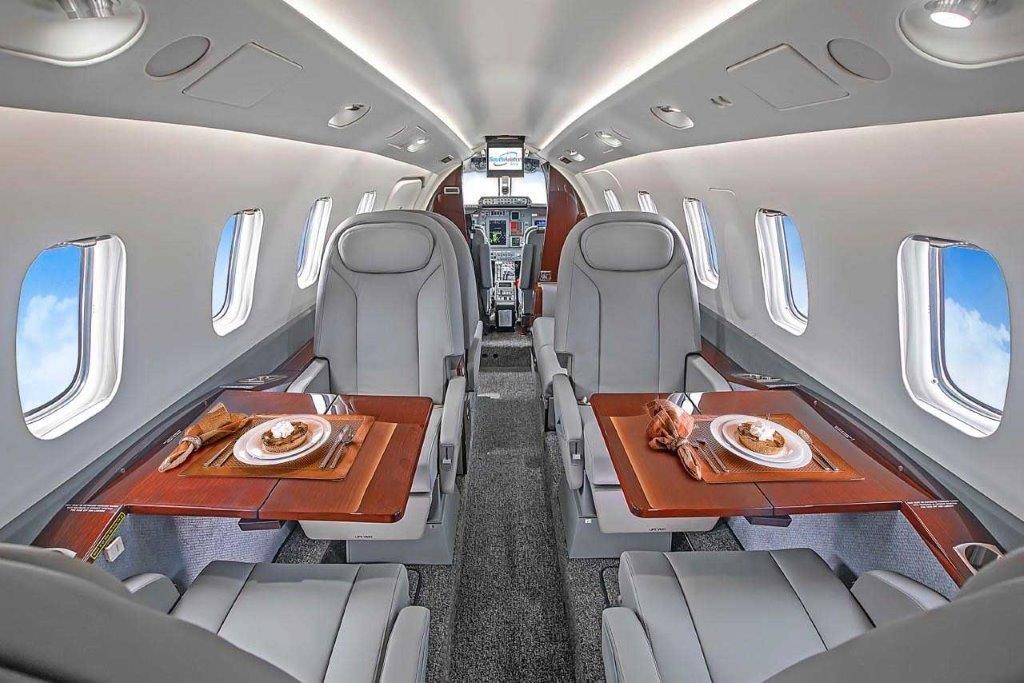

• Four-seat Club arrangement (full recline, lowerable inboard armrest)
• Dual executive tables
• Refreshment Cabinet with hot beverage container, ice chest, hot water dispenser and miscellaneous storage
• Aft fully enclosed lavatory with flushing potty
• Vanity Module with water system and faucet (on request)
• Illuminated wardrobe area for hanging storagecoat closet
• Lavatory toilet seat, belted and certified for takeoff and landing

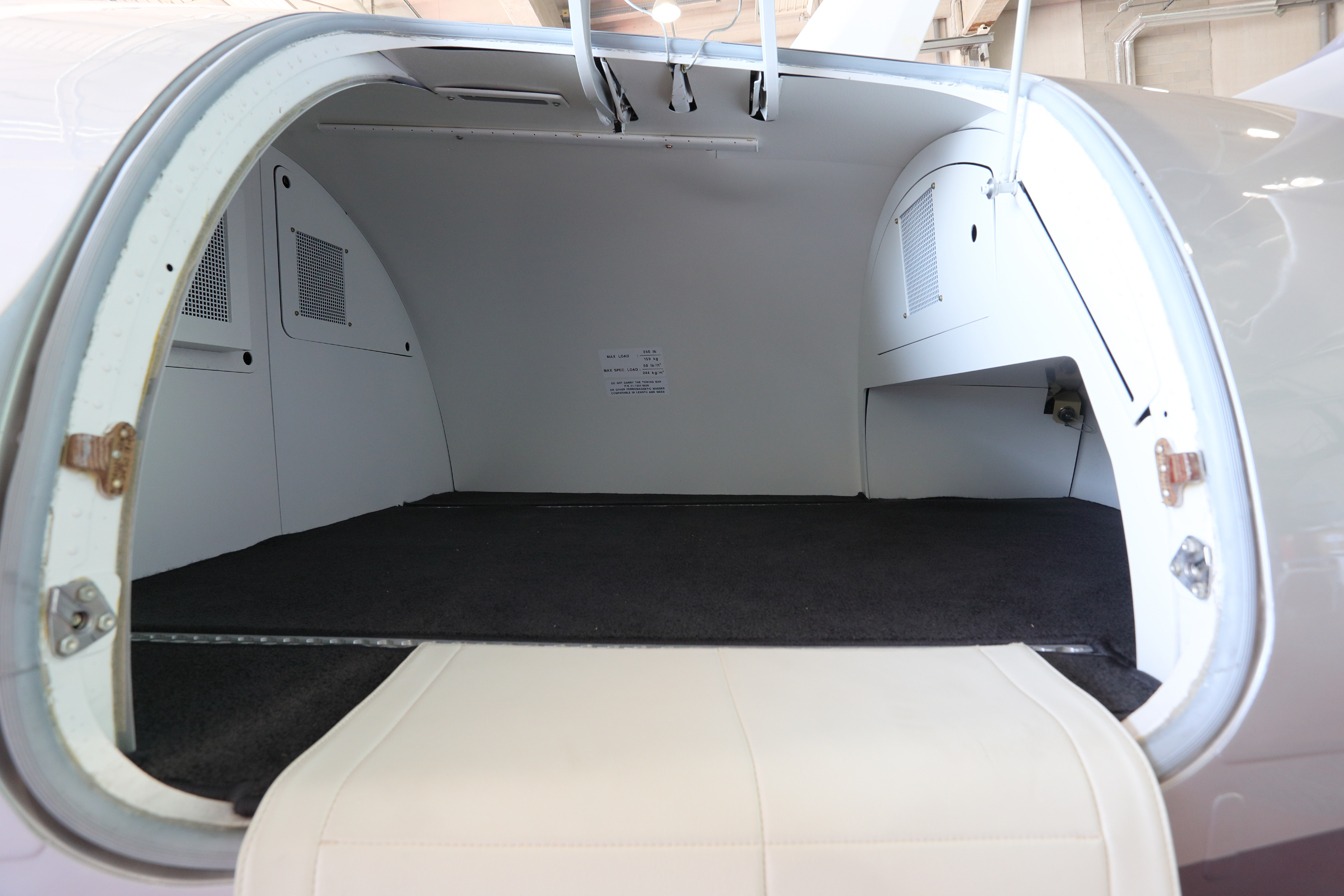

• Increased power 3-zone air conditioning mounted under floor for enlarge baggage area

Warranties

• Airframe – 5 years on fuselage, wings and empennage
• Engines – 5 years or 2500 flight hours, whichever occurs first
• Avionics - Collins avionics, 5 years
• Components – 2 years or 1000 flight hours, whichever occurs first

Training and Support

• Initial Training for 2 Pilots
• Training for 1 Maintenance Engineer
• CAMP or Traxxall program for one-year enrollment

P-180 Avanti EVO -  Factory Published Specifications

Max Speed at FL310 :  382 KTAS

Max Range - NBAA IFR with Increased Range Fuel :  1,640 nm

Max Fuel – Increased Range configuration :  3,200 lbs.

Pressurization Differential :  9.0 psi

Sea Level Cabin Maintained Up To 24,000 Feet

Max Take-off Weight :  12,100 lbs.

Max Landing Weight  : 11,500 lbs.

Max Zero Fuel Weight : 10,200 lbs.

Service Ceiling :  41,000 Feet

Take-off Distance – SL, ISA, to clear 50’ obstacle : 3,196 Feet

Landing Distance – SL, ISA, MLW, no reverse : 3,046 Feet
