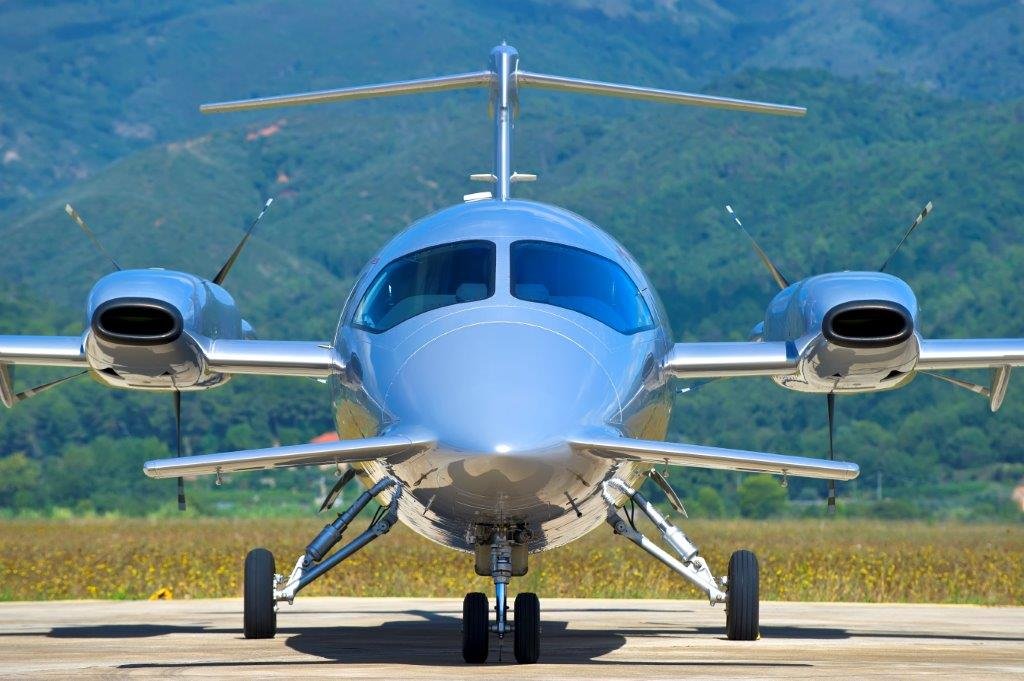

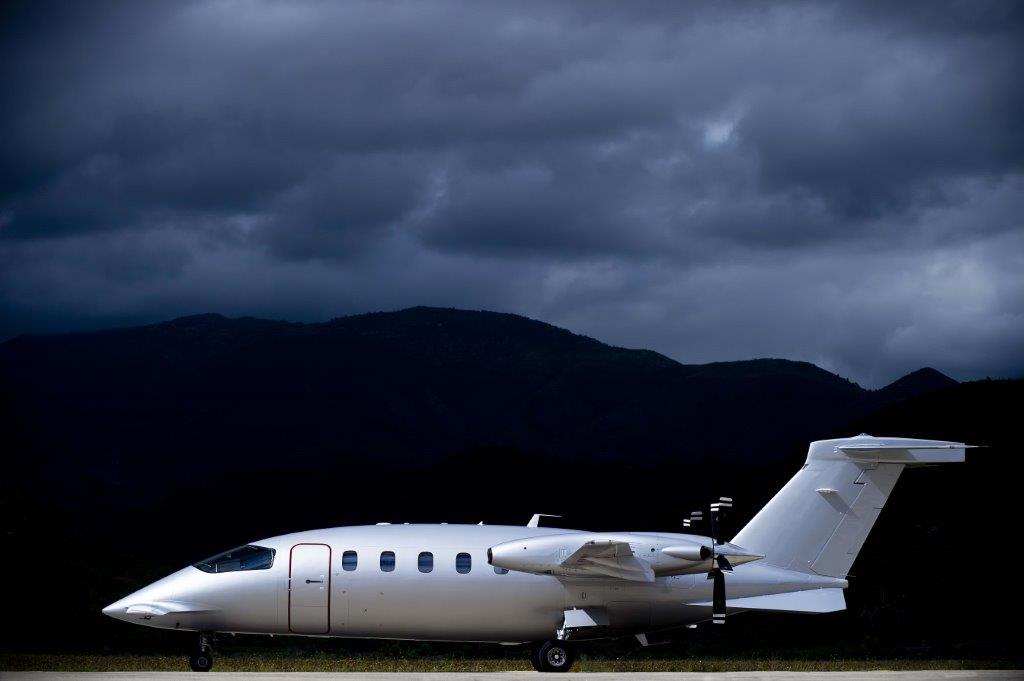

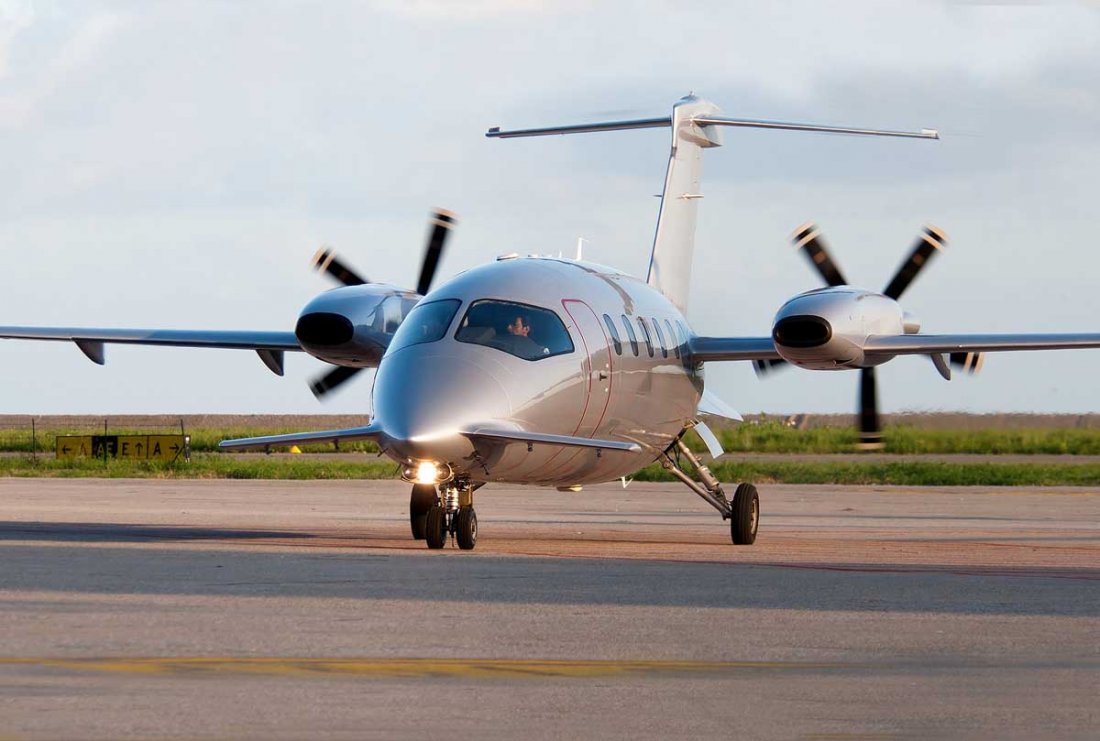

2011 P.180 Avanti II

Pratt & Whitney Canada PT6A-66B

- 2,460 / 2,460 TTSN

- 3,600 FH  TBO

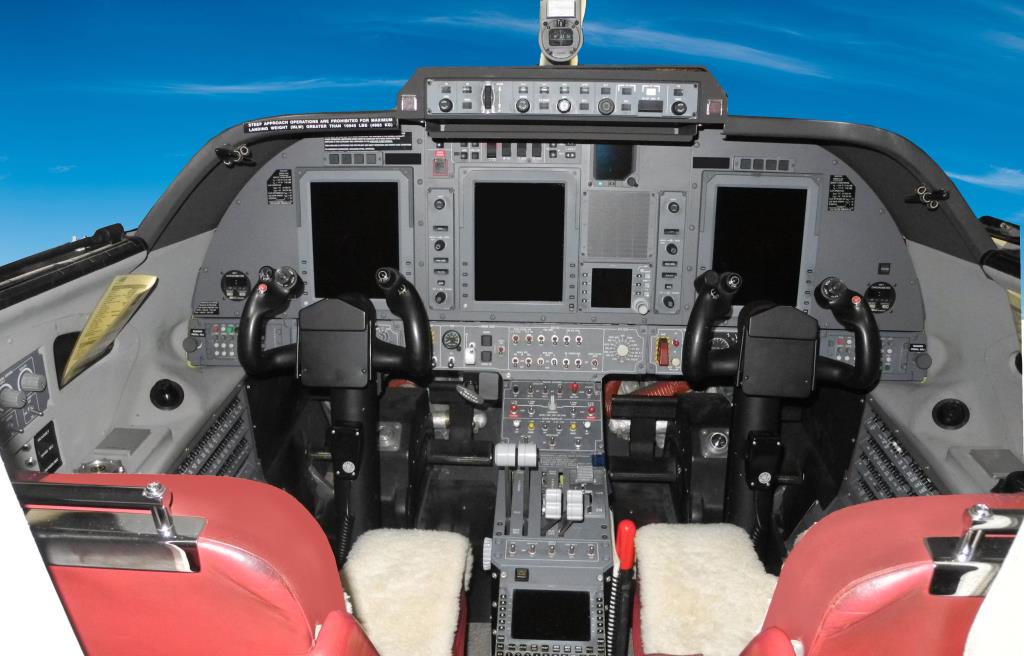

Collins Pro-Line 21 Avionics Kit with  UPGRADE IFIS 5000

• Radio Management System – Collins RTU-4200, CDU-3000
• Dual VHF COM - Collins VHF-4000 Transceiver with Antenna with 8.33 kHz spacing
• VHF NAV 1 + ADF - Collins NAV-4000 VOR/ILS/MKR/ADF Receiver with Antennae
• VHF NAV 2 - Collins NAV-4500 VOR/ILS/MKR Receiver with Antennae
• Single DME - Collins DME-4000 (3 channel) with Antenna
• Dual Mode S Flight ID Diversity Transponder - Collins TDR-94D
• Radio Altimeter - Collins ALT-4000 (Operation to 2500 ft) with Antennae
• Turbulence Detection Weather Radar - Collins RTA-852 Colour Radar with 12" Antenna
• TCAS II - Collins TCAS-4000 system
• TAWS Class B with Worldwide Database – L-3 Landmark TAWS 8000
• Dual Audio Panel - Baker B1045
• Dual Cockpit Speaker
• Dual hand-held Microphone
• Dual Boom/Microphone/Headset
• EFIS with EIS – Three Collins displays AFD-3010, two DCP-3030, CCP-3000
• Flight Guidance System - Collins Dual FGC-3003 (A/P,YD and dual Flight Director included),three  SVO-3000 Servos, single FGP-3000 Flight Guidance Panel
• Single FMS - Collins FMC-3000 (NAV to NAV and VNAV), CDU-3000 (used also for radio tuning),
• DBU-4100
• GPS Sensor Unit - Collins GPS-4000A
• Dual ADS - Collins ADC-3000
• Dual AHRS - Collins AHC-3000 and FDU-3000
• Maintenance Diagnostic System - Collins MDC-3110
• Four Data Concentrator Unit - Collins DCU-3001
• Stand-by Cluster Instrument – L-3 Communications GH-3100
• Emergency Locator Transmitter – Techtest Model 503 (3 frequency)
• Dual Clock (Flight Hour Meter included)
• Dual Master Annunciator
• Dual Turn&Slip Indicator (shown on the displays)
• Reversionary/Miscellaneous Panel
• RVSM Compliant

• Satellite Phone Air Cell ST3100
• Upgrade for Integrated Flight Information Collins IFIS 5000

• Electronic Charts Collins ECH 5000
• Maps Overlay Collins OVL 5000
• TCAS II - Collins TCAS 4000
• ADAS
• Engine Fire Extinguisher

• Max Take Off Weight Increase (12,100 lbs)
• JAR OPS 1 Kit
• Super VIP - Six Seats Cabin Arrangement
• Sheep Skin for Pilot & Copilot Seats

Overall Micalized Metal Grey

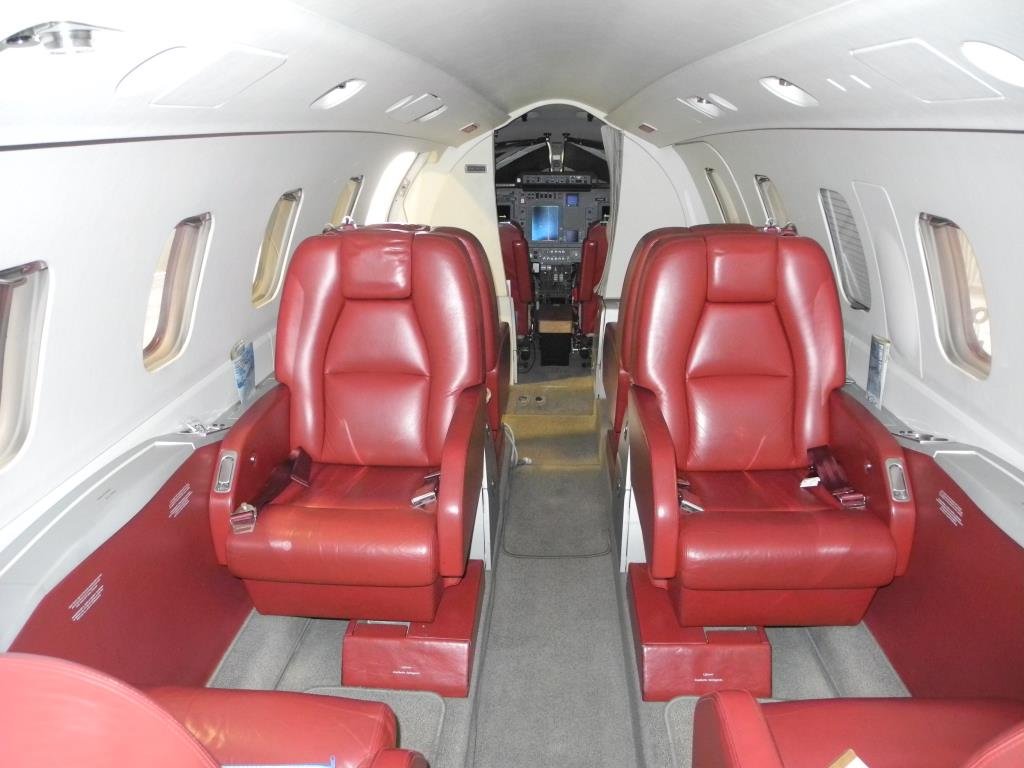

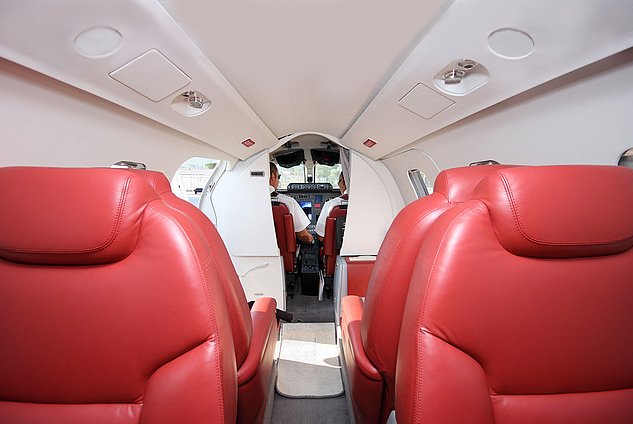

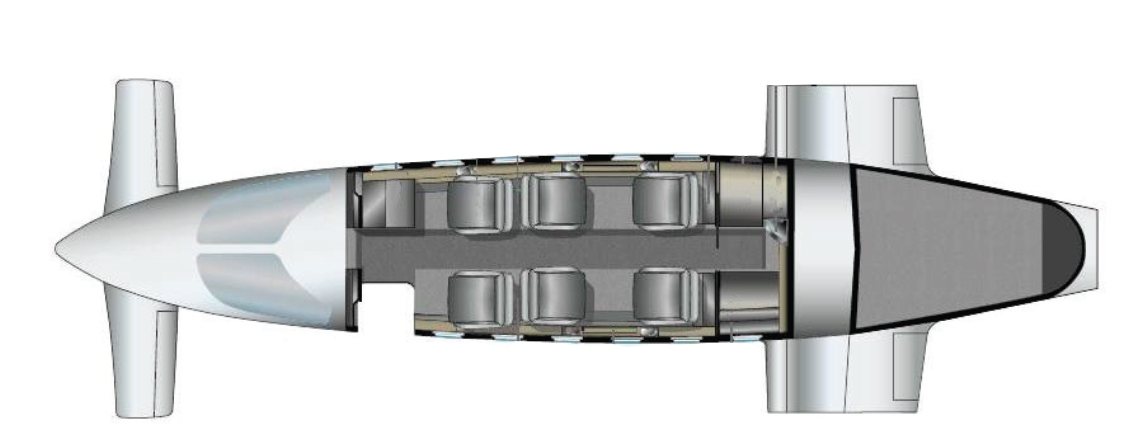

• 6-place "Option 2" floorplan

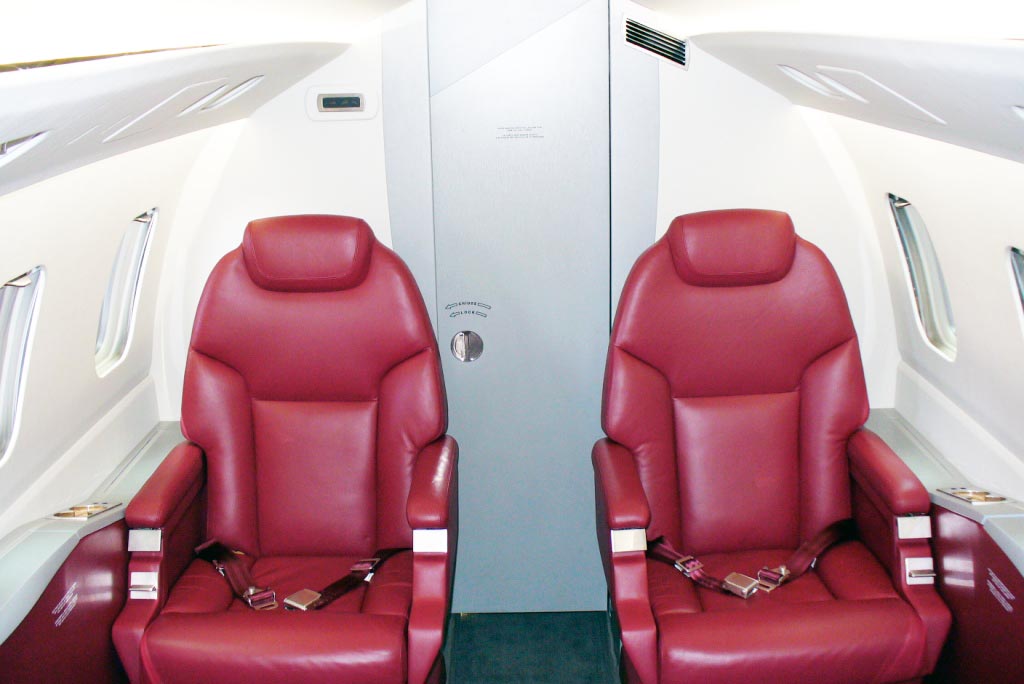

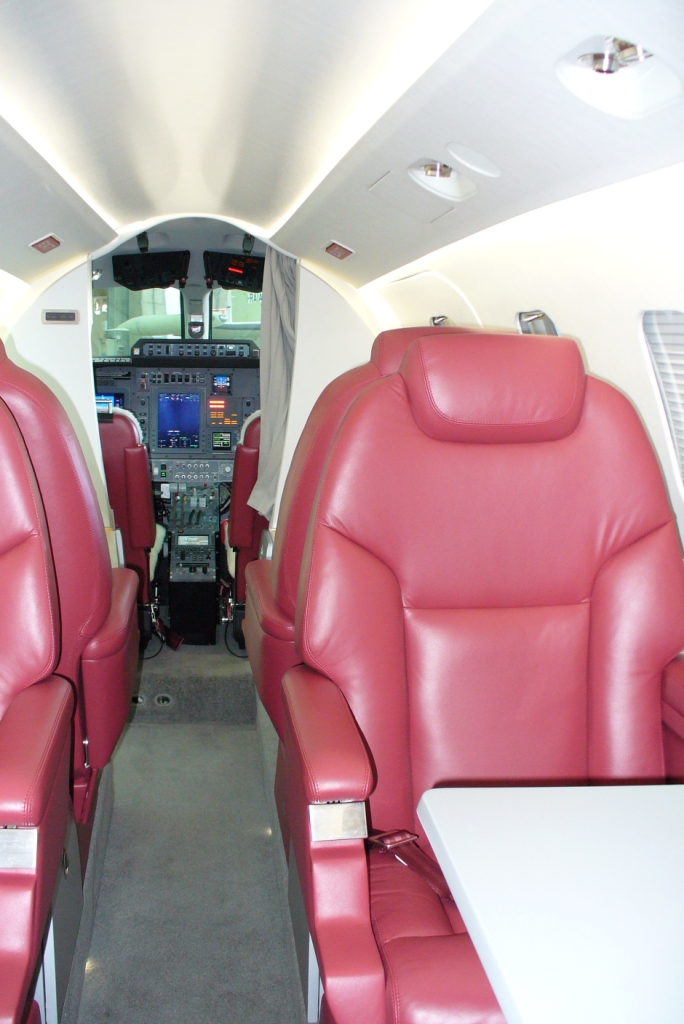

• Four single passenger seats in club arrangement, two FWD facing VIP seats
• Aft fully enclosed lavatory with flushing potty and belted aft auxiliary passenger seat
• Coat closet
• Dual executive tables
• Forward refreshment center with coffee thermos, liquor storage, ice chest and miscellaneous storage.

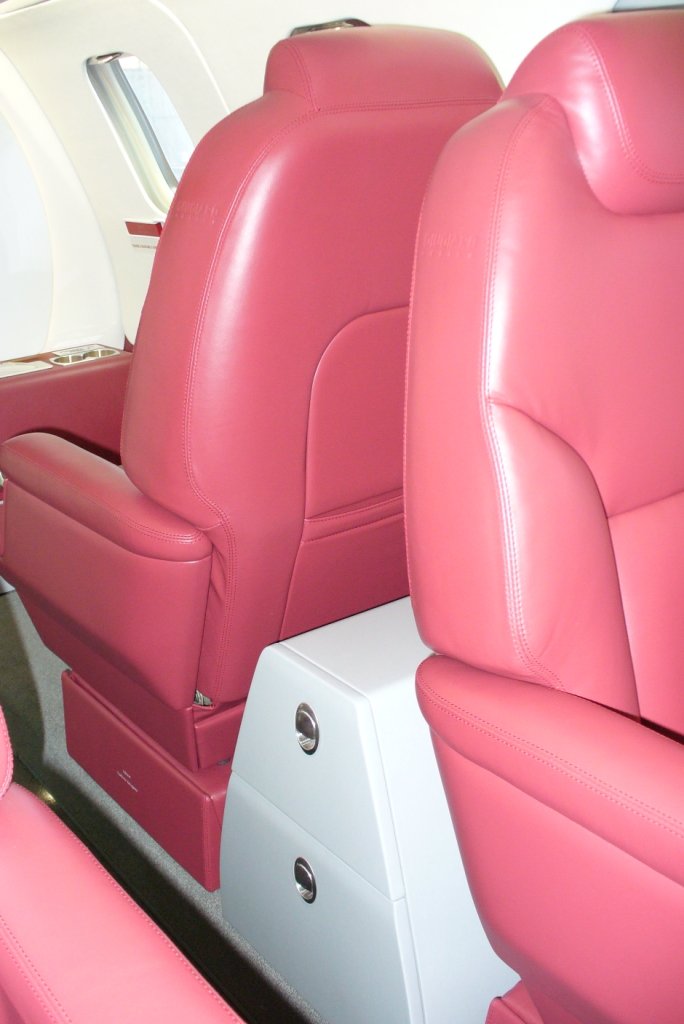

• Trim & Color :   Red Leather with Grey Metal lining
